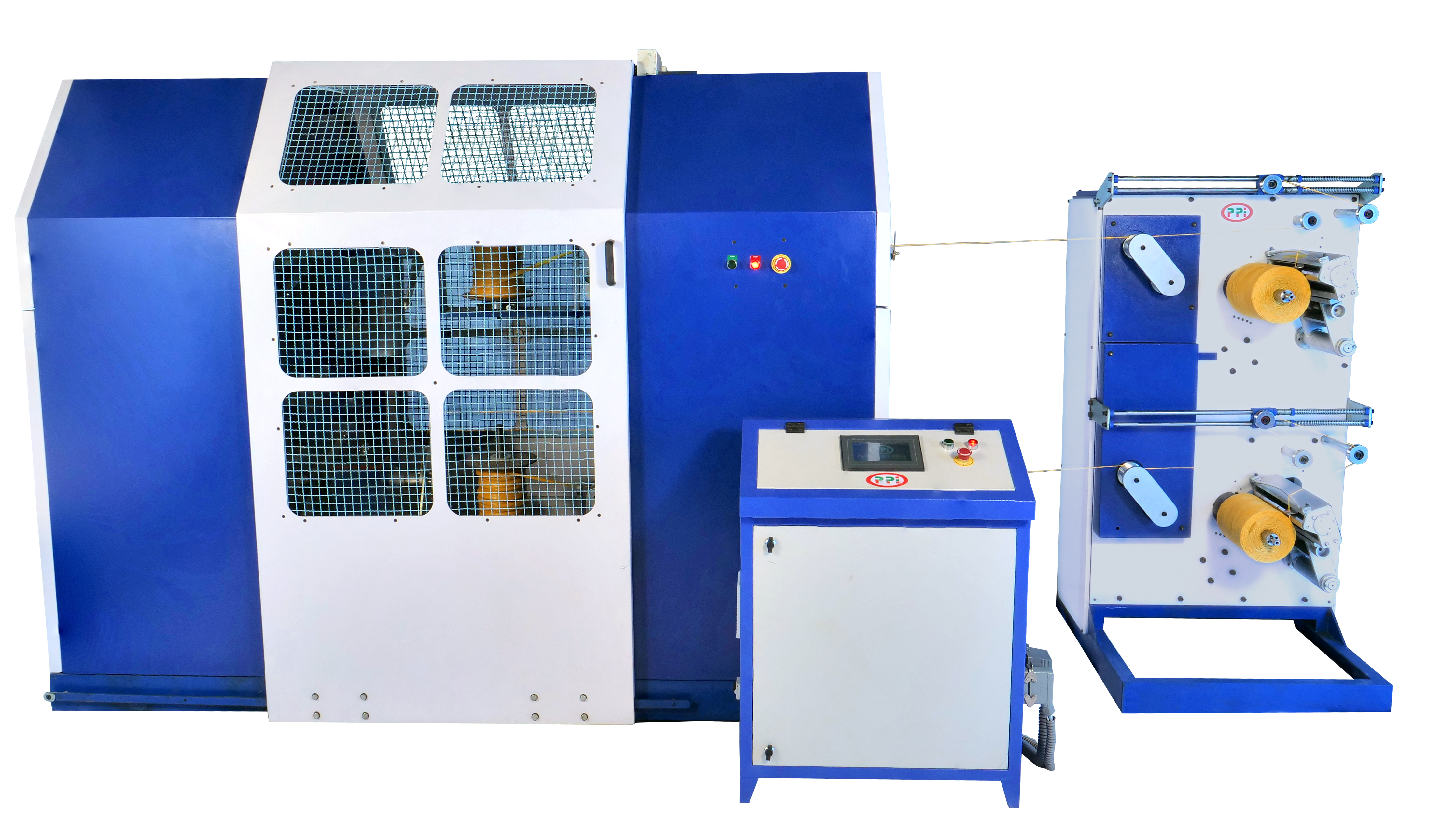

Description

Technical Specification

Rope range 6 mm to 24 mm
Braid length Adjustable
No of carriers 16 Carriers
Pitch size 160 mm
Power 0.9 KW.
Speed 225 RPM (Horn Gear)
Bobbin size 85 mm Dia. X 320 mm Traverse
Take-up wheel 300mm Dia.
Dimension (LxWxH) 4’4″ × 3’1″ × 7’3″
Weight of Machine 600 Kgs.

Key Features

  • A.C. Frequency drive.

  • User friendly Touch screen display with PLC control.

  • All parameters will be shown on display.

  • Hardened & Grounded cam base.

  • Teeth grounded horn gear.

  • Stoppage at empty bobbin.

  • Meter set point in display for desired length.

  • Braid length adjustment by display.

  • Adjustable braiding point setting.

  • Machine with fenced guard.

  • Wi-Fi connectivity system for computer.

  • Machine lubrication warning.

  • Daily, weekly & Monthly report system. (Direct Save in Excel format)

Optional Features

  • Coiling machine.

  • Bobbins rewinder four station.

  • Bobbins.

ROPE SIZE PITCH H. SPEED GRAM/MTR MTR/HR. PROD./HR.
6 mm 18 225 16 61 1
8 mm 24 225 29 81 2
10 mm 30 225 45 101 4
12 mm 36 225 65 121 8
14 mm 42 225 88 142 12
16 mm 48 225 116 162 19
18 mm 54 225 147 182 27
20 mm 60 200 181 180 33
22 mm 66 200 218 198 43
24 mm 72 200 260 216 56

Note: Models also Available with 24/32/48 Carries.
