Description

Technical Specification

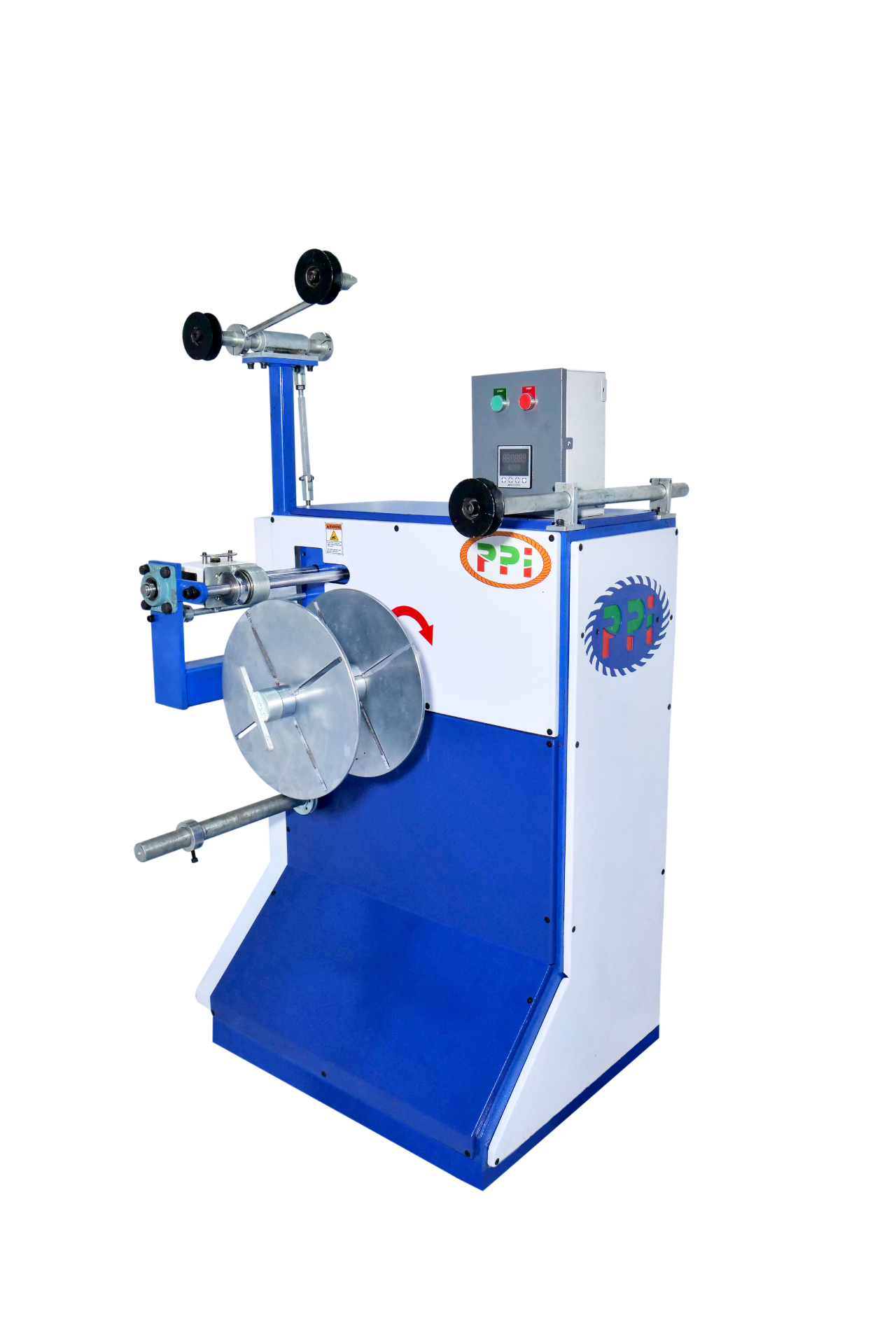

MODEL PPI/ CL-6
ROPE RANGE 6mm to 12mm
HEAD SPEED 250 RPM (Max.)
COIL WEIGHT MAX 25 Kgs.
MOTOR 1.5 KW A.C. Motor
TRAVERSE SYSTEM Auto Adjustable
DIMENSION 10’6″ × 4’3″ × 4’0″
WEIGHT 400 Kgs.

Key Features

  • Digital length counter meter.

  • Easy to operate.

  • Layer to layer uniform winding.

  • Mechanical brake system for pay off bobbin.

  • Self adjustable traverse system

Optional Features

  • A.C. frequency drive

  • Ele. wire hoist for removal of final package

  • Digital printer attachment.

  • Coil to Recoil mechanism.

  • Pneumatic head opening system
