Description

Technical Specification

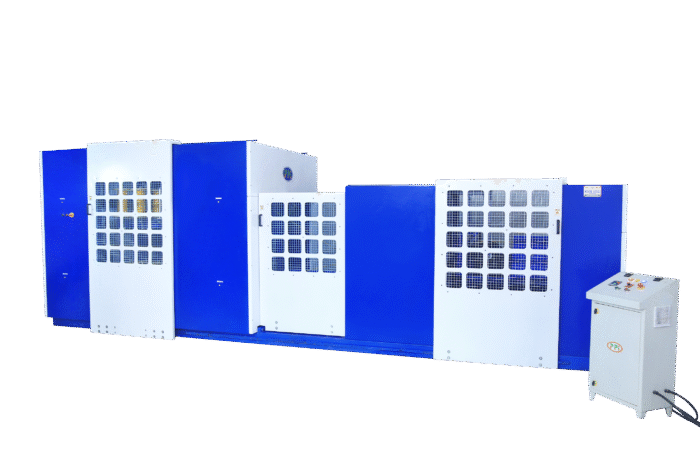

MODEL PPI/ E-6
ROPE RANGE 6mm to 12mm
STRAND FLYER RPM Max. 1000
ROPE FLYER RPM Max. 500
ROPE LAY Z
TWIST PER MINUTE Twice The Flyer Speed
TWIST RANGE 13 to 63 TPM
TWIST IN STRAND Adjustable
PAY OFF PACKAGE SIZE 250 mm Dia. X 300 mm Tra.
TAKE UP CAPACITY 25 Kgs. (Approx)

Key Features

  • Anti twisting unit.

  • User friendly touch screen display with PLC control.

  • All parameters will be shown on display.

  • RPM/TPM & twist factor adjustment by display.

  • Weight & Meter set point.

  • Denier & twisting calculator in display.

  • Door location warning.

  • Machine lubrication warning.

  • A.C. drive fault alarm indication.

  • 100 program memory storage facility.

  • Daily, weekly & monthly report system. (Direct save in excel format)

  • Direct Coiling Head

  • Wi-Fi connectivity system for computer.

Optional Features

  • Feeding capstan mechanism.

  • Rope Lay S & Z.

Production Capacity ( On 100% Efficiency )

ROPE SIZE PROD. (KG/HR.) TPM RPM (MAX) GRM/MTR
6mm 21.79 kg 45.05 500 16.36
8mm 51.67 kg 33.38 500 29.09
10mm 90.80 kg 27.03 450 45.45
12mm 139.50 kg 22.52 400 65.45
AVAILABLE MODELS PPI/E-6-336 PPI/E-6-448
Motor Capacity 13.5 KW 17 KW
Number of Strand 3 Ply 4 Ply
Number of pay off package 12 X 3 = 36 12 X 4 = 48
Dimension (L x W x H) 23’9″ x 7’1″ x 7’5″ 23’9″ x 7’1″ x 7’5″
Weight (Approx.) 4000 Kgs. 4310 Kgs.
