Description

Technical Specification

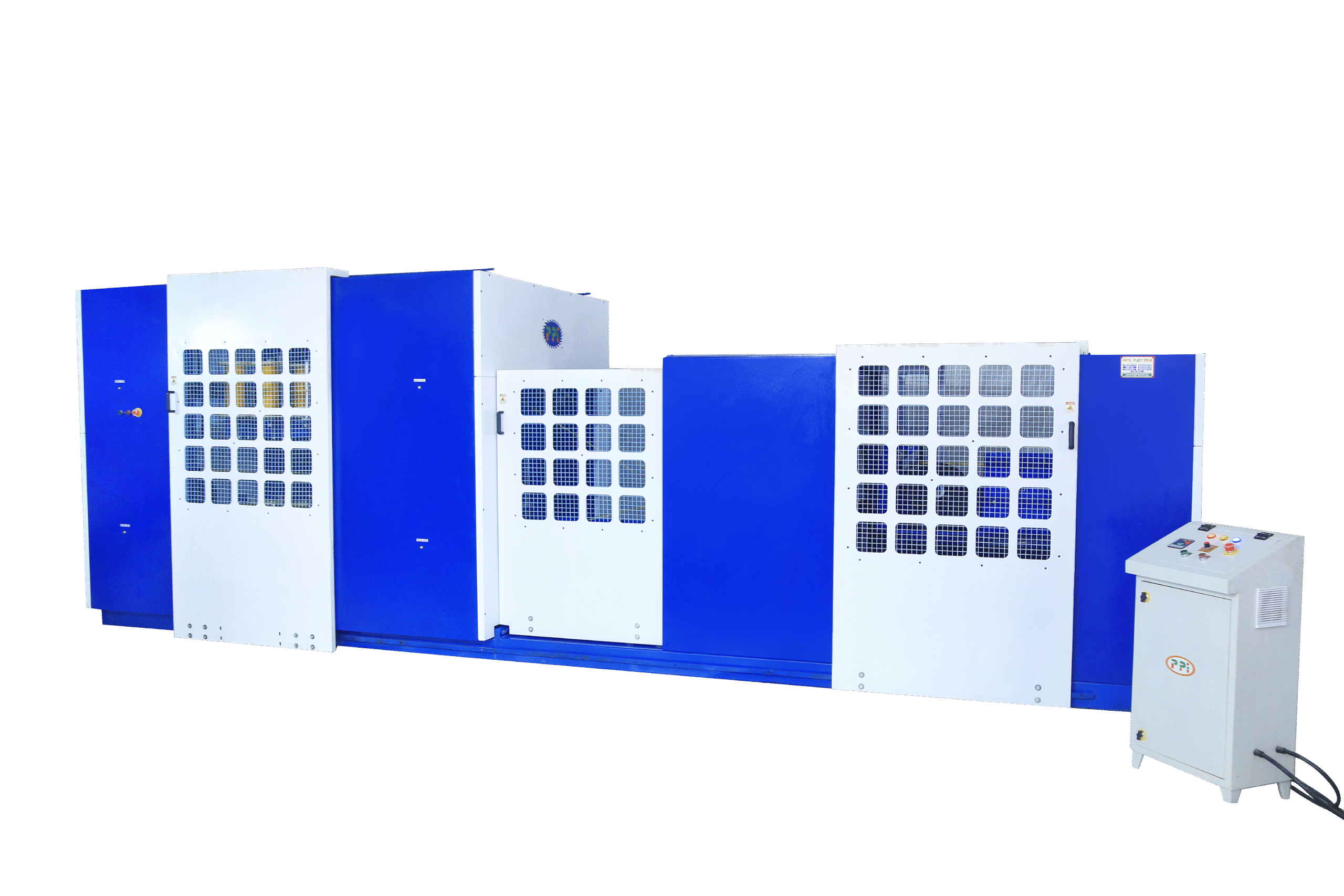

MODEL PPI/ E-8
ROPE RANGE 8mm to 16mm
STRAND FLYER RPM Max. 900
ROPE FLYER RPM Max. 450
ROPE LAY Z
TWIST RANGE 15 to 45 TPM
TWIST IN STRAND Adjustable
PAY OFF PACKAGE SIZE 250 mm Dia. X 300 mm Tra.
TAKE UP CAPACITY 57 Kgs. (Approx)

Key Features

  • Anti twisting unit.

  • User friendly touch screen display with PLC control.

  • All parameters will be shown on display.

  • RPM/TPM & twist factor adjustment by display.

  • Weight & Meter set point.

  • Denier & twisting calculator in display.

  • Door location warning.

  • Machine lubrication warning.

  • A.C. drive fault alarm indication.

  • 100 program memory storage facility.

  • Daily, weekly & monthly report system. (Direct save in excel format)

  • Direct Coiling Head

  • Wi-Fi connectivity system for computer.

Optional Features

  • Feeding capstan mechanism.

  • Ele.Wire hoist for removal of final package

  • Rope Lay S & Z.

Production Capacity ( On 100% Efficiency )

ROPE SIZE PROD. (KG/HR.) TPM RPM (MAX) GRM/MTR
8mm 46.50 kg 33.78 450 29.09
10mm 90.80 kg 27.03 450 45.45
12mm 139.50 kg 22.52 400 65.45
14mm 193.77 kg 19.31 350 89.09
16mm 248.01 kg 16.89 300 116.36
AVAILABLE MODELS PPI/E-8-348 PPI/E-8-464
Motor Capacity 18.5 KW 20.5 KW
Number of Strand 3 Ply 4 Ply
Number of pay off package 16 X 3 = 48 16 X 4 = 64
Dimension (L x W x H) 29′ x 7’2″ x 7’2″ 29′ x 7’2″ x 7’2″
Weight (Approx.) 6300 Kgs. 6500 Kgs.
