Description

Technical Specification

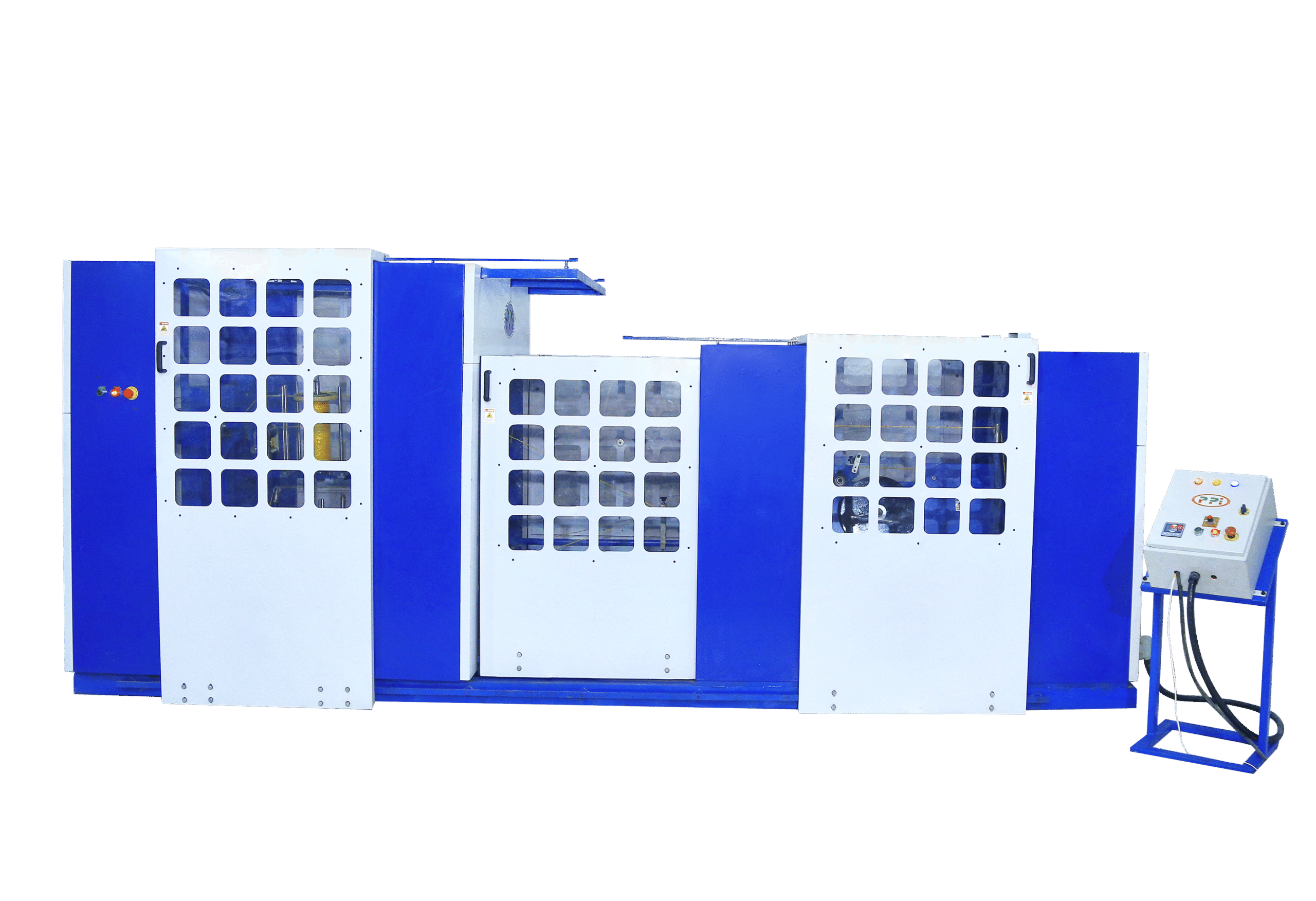

MODEL PPI/2E
ROPE RANGE 2mm to 6mm
TWIST RANGE 40 to 150 TPM
STRAND FLYER RPM Max. 2400
ROPE FLYER RPM Max. 1200
ROPE LAY Z
TAKE UP CAPACITY Infinite
TWIST IN STRAND Adjustable
PAY OFF PACKAGE SIZE 250 mm Dia. × 300 mm Tra. (2 Package Per Ply.)
400 mm Dia. × 300 mm Tra. (1 Package Per Ply.)

Key Features

  • User friendly touch screen display with PLC control.

  • All parameters will be shown on display.

  • RPM/TPM & twist factor adjustment by display.

  • Weight & Meter set point.

  • Denier & twisting calculator in display.

  • Door location warning.

  • Machine lubrication warning.

  • A.C. drive fault alarm indication.

  • 100 program memory storage facility.

  • Daily, weekly & monthly report system. (Direct save in excel format)

  • Two Station Pneumatic Coiling Head with 4 kg Take up Capacity, Power Req. 0.75 kw.

  • Wi-Fi connectivity system for computer.

Optional Features

  • In the Coiling Head Take up Capacity can be Customize up to 1 Ton.

Production Capacity ( On 100% Efficiency )

AVAILABLE MODELS PPI/2-E-36 PPI/2-E-48
Motor Capacity 22.2 KW 22.2 KW
Number of Strand 3 Ply 4 Ply
Number of pay off package 2 × 3 = 6 2 × 4 = 8
Dimension (L x W x H) 11’8″ × 7’0″ × 7’1″ 11’8″ × 7’0″ × 7’1″
Weight (Approx.) 3000 Kgs. 3500 Kgs.
ROPE SIZE PROD. (KG/HR.) TPM RPM (MAX) GRM/MTR
2mm 3.20 90.00 1200 2.00
3mm 6.93 85.00 1200 4.09
4mm 15.49 67.57 1200 7.27
5mm 30.27 54.05 1200 11.36
6mm 43.58 45.05 1000 16.36
