Description

Technical Specification

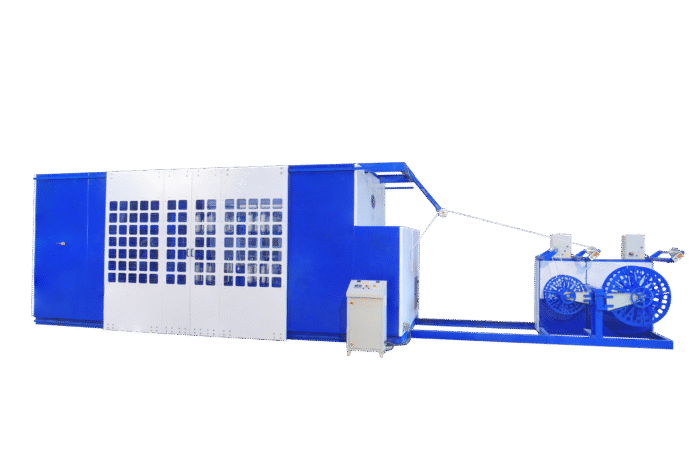

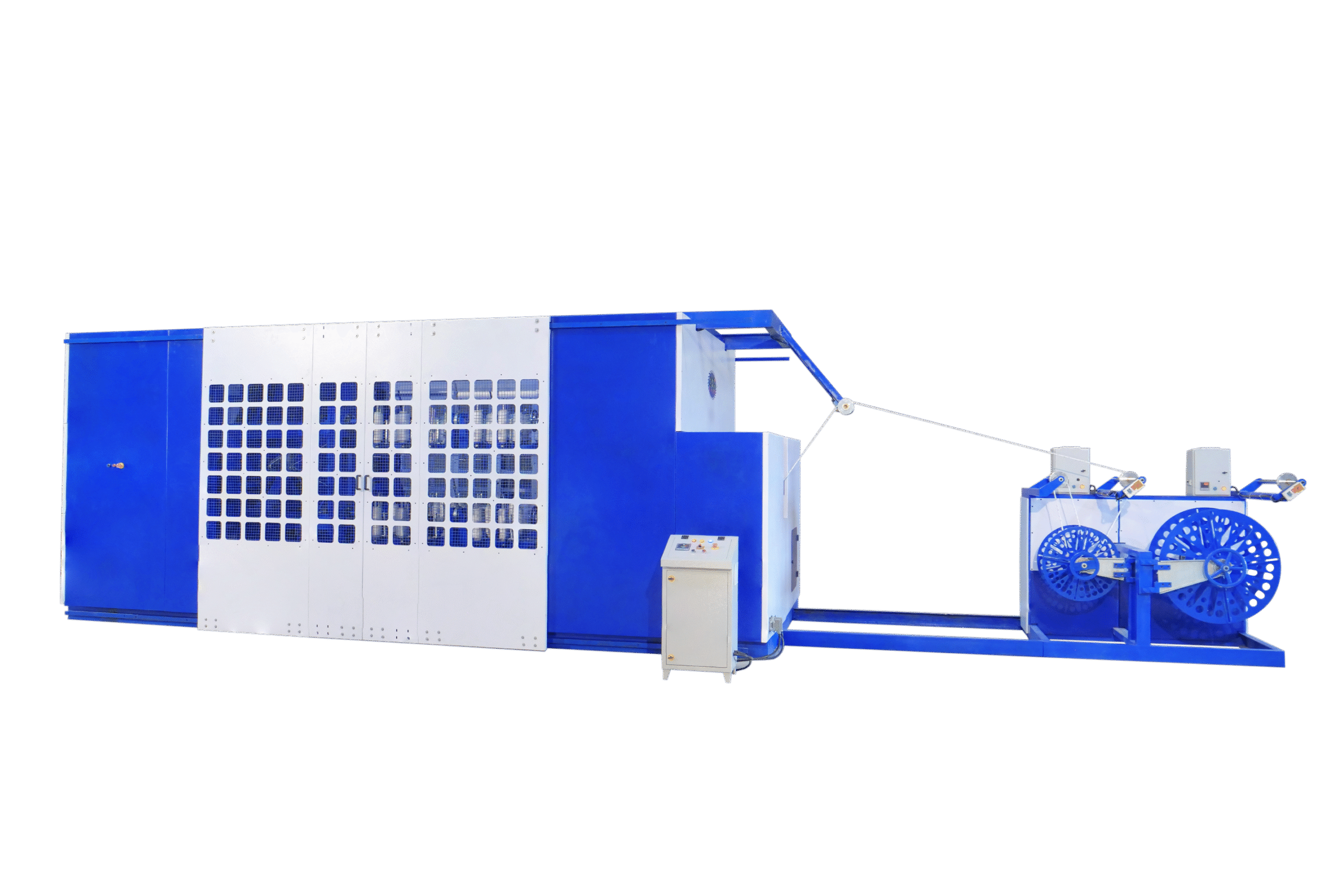

MODEL PPI/ 12-E
ROPE RANGE 12mm to 24mm
ROPE FLYER RPM Max.250
TWIST PER MINUTE Twice The Flyer Speed
ROPE LAY Z
TWIST RANGE 7 to 32 TPM
TWIST IN STRAND Adjustable
PAY OFF PACKAGE SIZE 250 mm Dia. X 300 mm Tra.
TAKE UP CAPACITY Infinite

Key Features

  • User friendly touch screen display with PLC control.

  • All parameters will be shown on display.

  • RPM/TPM & twist factor adjustment by display.

  • Weight & Meter set point.

  • Denier & twisting calculator in display.

  • Door location warning.

  • Machine lubrication warning.

  • A.C. drive fault alarm indication.

  • 100 program memory storage facility.

  • Feeding capstan mechanism

  • Wi-Fi connectivity system for computer.

Optional Features

  • One / Two head coiling machine.

  • Digital printer attachment

  • Ele. wire hoist for removal of final package.

  • Rope Lay S & Z

Production Capacity ( On 100% Efficiency )

AVAILABLE MODELS PPI/12-E-480
Motor Capacity 26 KW
Number of Strand 4 Ply
Number of pay off package 20 x 4 = 80
Dimension (L x W x H) 26’2″ x 8’5″ x 8’10”
Weight (Approx.) 10500 Kgs.
ROPE SIZE PROD. (KG/HR.) TPM RPM (MAX) GRM/MTR
12mm 86.67 kg 22.50 250 65.00
14mm 126.00 kg 19.00 225 89.00
16mm 174.00 kg 16.00 200 116.00
18mm 235.00 kg 15.00 200 147.27
20mm 242.42 kg 13.50 150 181.82
22mm 268.50 kg 12.30 125 220.00
24mm 278.04 kg 11.30 100 261.82
