Description

Technical Specification

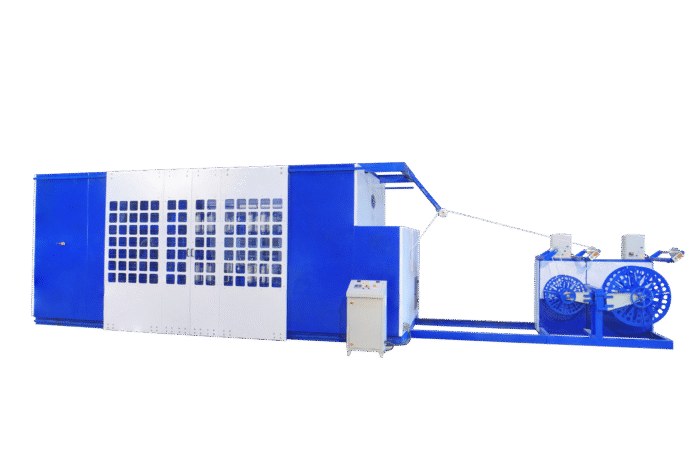

MODEL PPI/ 6-E
ROPE RANGE 6mm to 12mm
ROPE FLYER RPM Max. 450
TWIST PER MINUTE Twice The Flyer Speed
ROPE LAY S & Z
TWIST RANGE 15 to 65 TPM
TWIST IN STRAND Adjustable
PAY OFF PACKAGE SIZE 250 mm Dia. × 300 mm Tra.
TAKE UP CAPACITY Infinite

Key Features

  • User friendly touch screen display with PLC control.

  • All parameters will be shown on display.

  • RPM/TPM & twist factor adjustment by display.

  • Weight & Meter set point.

  • Denier & twisting calculator in display.

  • Door location warning.

  • Machine lubrication warning.

  • A.C. drive fault alarm indication.

  • 100 program memory storage facility.

  • Daily, weekly & monthly report system. (Direct save in excel format)

  • Wi-Fi connectivity system for computer.

Optional Features

  • One / Two head coiling machine.

  • Ele. wire hoist for removal of final package.

  • Rope Lay S & Z

Production Capacity ( On 100% Efficiency )

AVAILABLE MODELS PPI/6-E-440
Motor Capacity 18.5 KW
Number of Strand 4 Ply
Number of pay off package 10 x 4 = 40
Dimension (L x W x H) 21’6″ x 8’5″ x 8’10”
Weight (Approx.) 6500 Kgs.
ROPE SIZE PROD. (KG/HR.) TPM RPM (MAX) GRM/MTR
6mm 19kg 45.00 450 16.00
8mm 42kg 33.00 400 29.00
10mm 70kg 27.00 350 45.00
12mm 104kg 22.00 300 65.00
