Description

Technical Specification

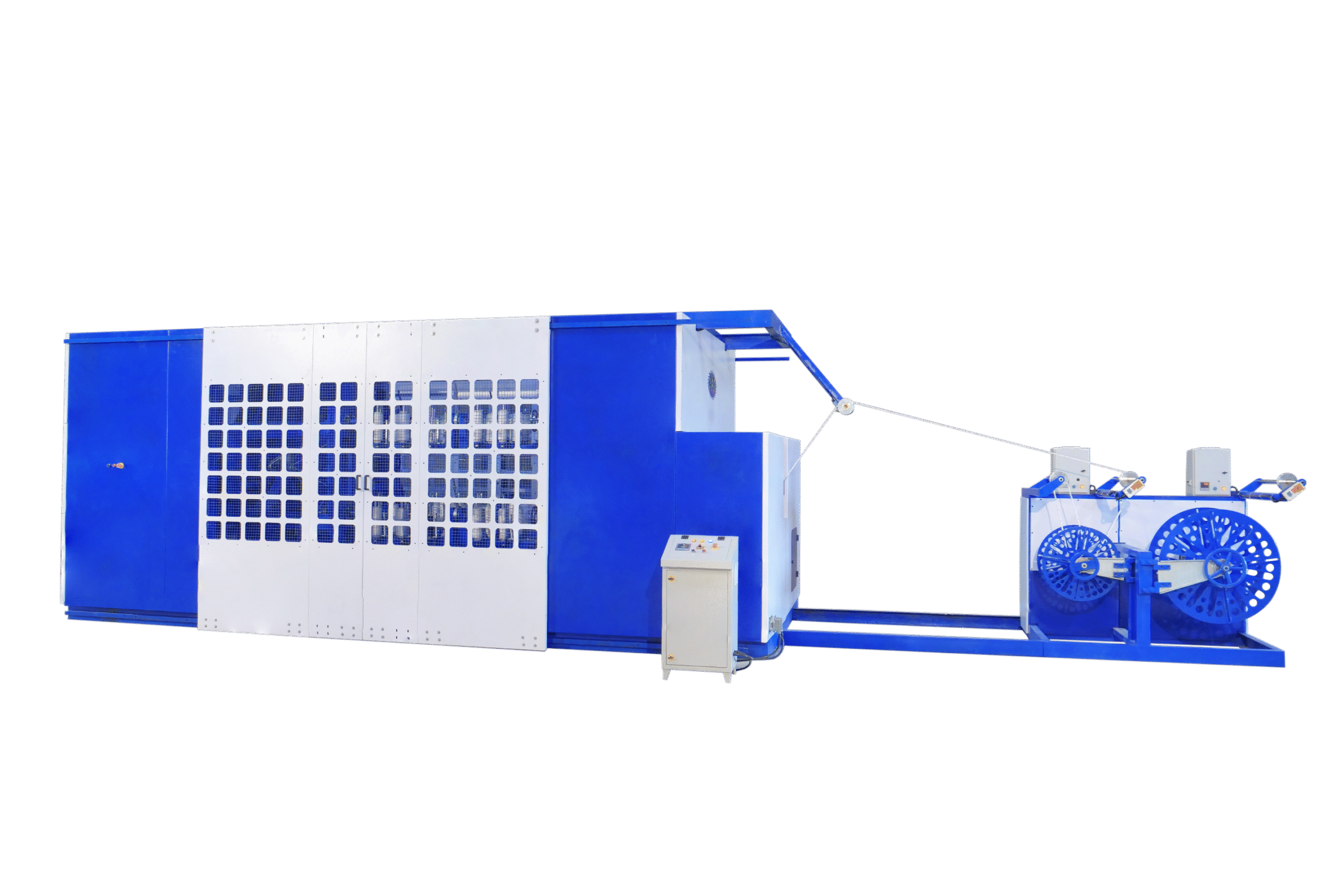

MODEL PPI/ 8-E
ROPE RANGE 8mm to 16mm
ROPE FLYER RPM Max.300
TWIST PER MINUTE Twice The Flyer Speed
ROPE LAY Z
TWIST RANGE 15 to 45 TPM
TWIST IN STRAND Adjustable
PAY OFF PACKAGE SIZE 250 mm Dia. X 300 mm Tra.
TAKE UP CAPACITY Infinite

Key Features

  • User friendly touch screen display with PLC control.

  • All parameters will be shown on display.

  • RPM/TPM & twist factor adjustment by display.

  • Weight & Meter set point.

  • Denier & twisting calculator in display.

  • Door location warning.

  • Machine lubrication warning.

  • A.C. drive fault alarm indication.

  • 100 program memory storage facility.

  • Daily, weekly & monthly report system. (Direct save in excel format)

  • Wi-Fi connectivity system for computer.

Optional Features

  • One / Two head coiling machine.

  • Ele. wire hoist for removal of final package.

  • Rope Lay S & Z

Production Capacity ( On 100% Efficiency )

AVAILABLE MODELS PPI/6-E-440
Motor Capacity 22.5 KW
Number of Strand 4 Ply
Number of pay off package 16 x 4 = 64
Dimension (L x W x H) 24″ x 8’5″ x 8’10”
Weight (Approx.) 9500 Kgs.
ROPE SIZE PROD. (KG/HR.) TPM RPM (MAX) GRM/MTR
8mm 31.00 kg 33.78 300 29.09
10mm 55.48 kg 27.03 275 45.45
12mm 87.19 kg 22.52 250 65.45
14mm 124.57 kg 19.31 225 89.09
16mm 165.34 kg 16.89 200 116.36
