Description

Technical Specification

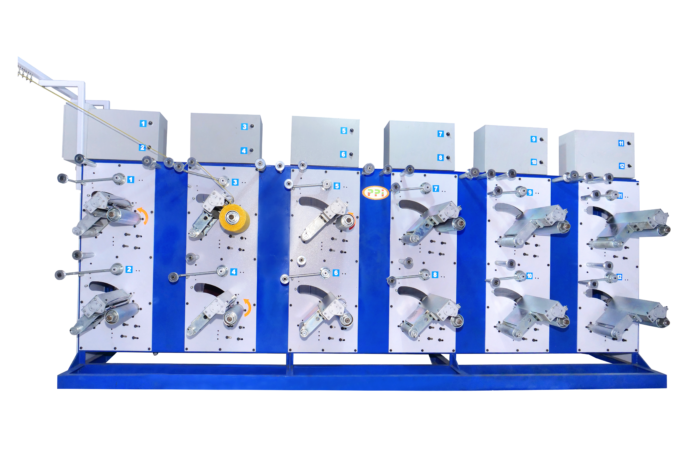

MODEL PPI/ CW-100
NO. OF POSITIONS Single Side / Double Side
METAL COP SIZE 42mm ID X 46mm OD X 480mm Length
TRAVERSE BI-Conical
TRAVERSE LENGTH 440mm Maximum
DIAMETER OF PACKAGE 150mm
MATERIAL WEIGHT OF PE Approx. 4 to 5 kg
TRAVERSE CONTROL 2.2 KW Motor, Driven by Inverter
MAXIMUM LINE SPEED 160 MPM
SPINDLE MOTOR 5 Kg. CM Tork
WINDING TENTION Controllable
SPINDLE WINDER AC Drive
PACKAGE SHAPE/BUILT UP Control by Servo Drive
MACHINE OPERATION with HMi
