Description

Technical Specification

MODEL PPI/ BW
NO. OF POSITIONS 2 to 16 Positions (Even)
DENIER RANGE Max. 45,000
WINDING On flange Bobbin
MOTOR 0.74 KW Torque Motor
WINDING SPEED MAX. 150 MPM Max.
PACKAGE SIZE 250mm Dia X 300mm Traverse*
TAKE UP CAPACITY 7 kg.
DIMENSION (LxWxH) 6’10” X 3’6″ X 6’0″ (8 Position)

Key Features

  • Nominal Power Consumption.

  • Timing Belt Drive.

  • Low Maintenance Cost.

  • Electrical control for torque Adjustment.

  • Each Station has individual Motor & Traverse.

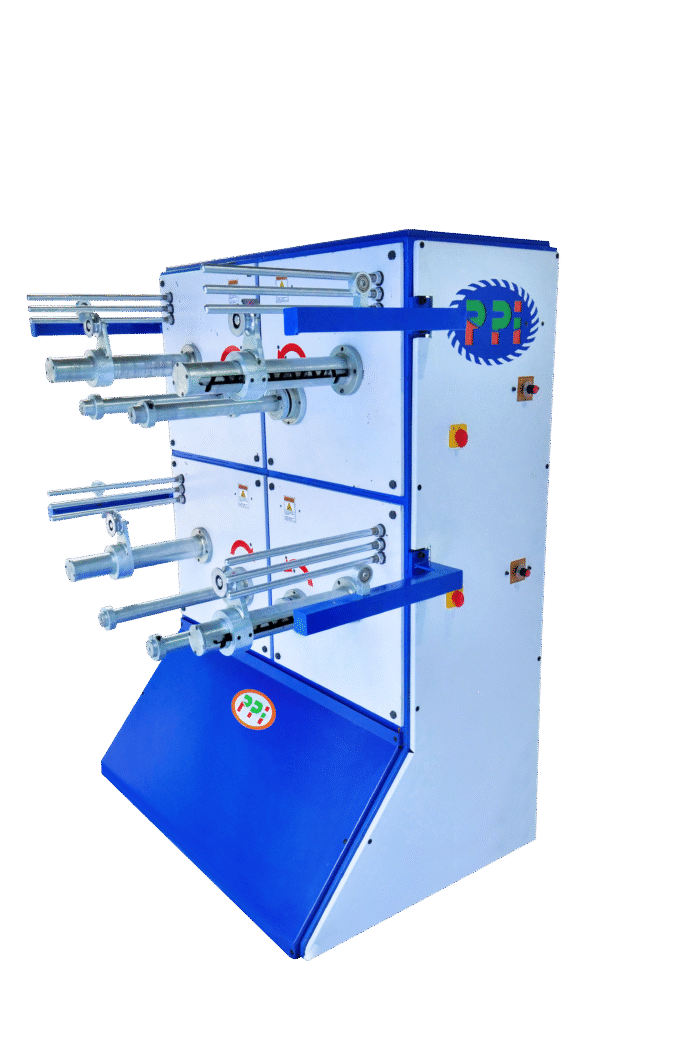

Note: Bobbin Winder for PP Tape, Monofilament & Danline.

Bobbin Re-winder for Cotton, Jute, Sisal, Manila, POY, Polyester & all other natural synthetic fibre yarns.
