Description

Technical Specification

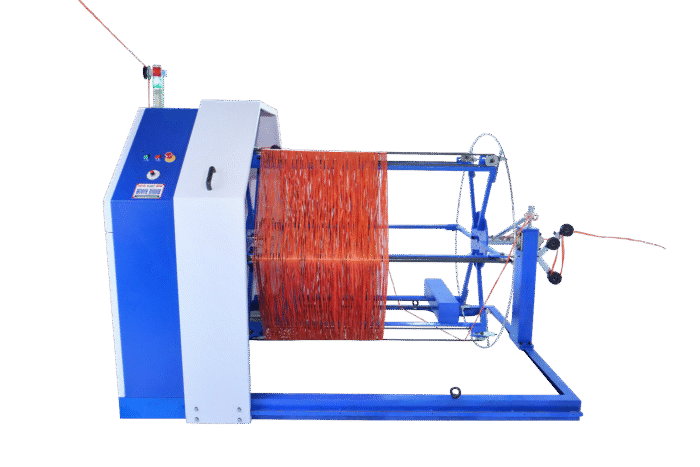

MODEL PPI/ ACC
DENIER RANGE 7,500 to 1,00,000 Denier
LINE SPEED 200 MPM Max.
POWER 0.75 KW With A.C. Frequency Drive
YARN STORE CAPACITY 1200 MTR. Max.
DIMENSION (LxWxH) 9’0″ x 5’0″ x 5’1″
WEIGHT 500 Kgs.

Key Features

  • Integrates with Inflow Twister & Extruder.

  • Dancing Arm for feeding yarn compensation.

  • Variable speed control.

  • Easy and compact design.

  • Notifies on Yarn Break.

  • Feeding tension Adjustment during unwinding.

NOTE: FOR POLY PROPYLENE TAPE BETWEEN 7,500 – 1,00,000 DENIER RANGE

MODEL ALSO AVAILABLE FOR 1,50,000 DENIER & 2,00,000 DENIER.
